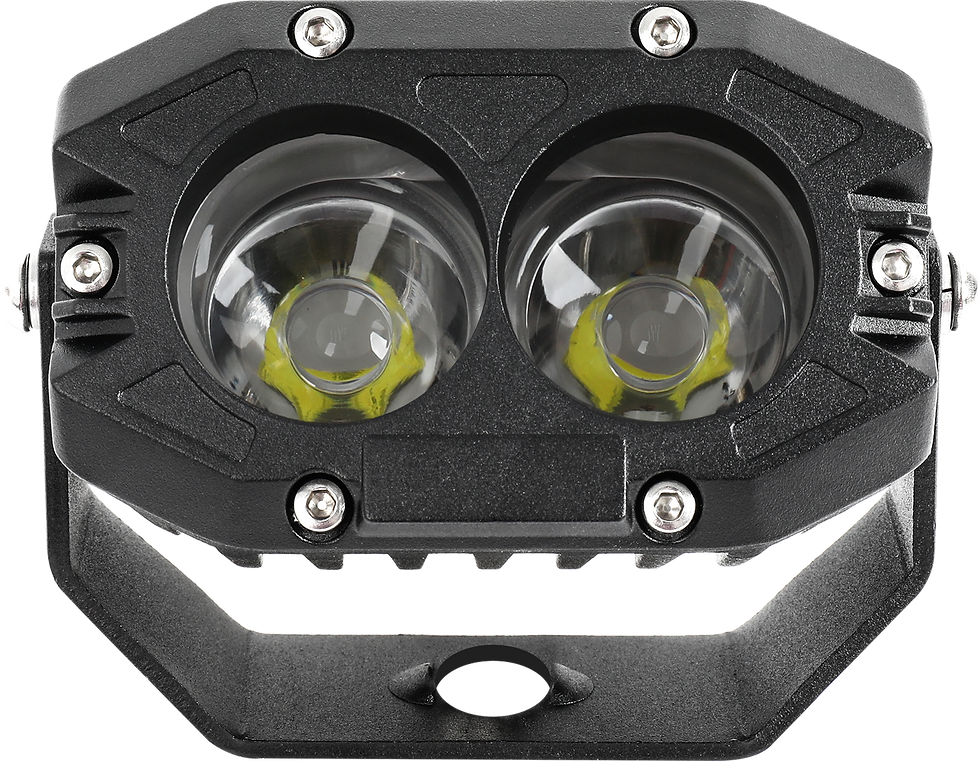

Fusion SX-30 Series
The Spectrumtek Fusion SX-30 represents premium compact off-road lighting engineering designed specifically for A-pillar, cowl, and ditch mounting applications. Featuring 2 pieces of 10W high-intensity CREE LED chips delivering 3,750 lumens, this professional 30W light provides 100-metre effective range (1 lux @ 100m) with exceptional 6000K cool white colour temperature. The innovative 8D optical system ensures precise beam control with multiple beam pattern options (spot, combo, flood) available to match specific professional requirements.
• Premium CREE LEDs: 2×10W high-intensity CREE chips, 50,000+ hour lifespan
• Optimized Performance: 30W power delivering 3,750 lumens actual output
• 100-Metre Range: Validated effective distance (1 lux @ 100m)
• 8D Optical System: Advanced reflector for precise beam control
• Multiple Light Options Available: Spot, combo, and flood beam patterns - select at order
• Compact Ditch Light: 105×70×92.5mm ideal for A-pillar/cowl mounting
• IP68/IP69K Certified: Dual waterproof for submersion and high-pressure
• Advanced Protection: Polarity reversal, overvoltage, and vibration resistant
LED Configuration
Light Output
Beam Range
2×10W CREE 30W Total
3,750 Lumens (Actual Measured)
100 Metres (1 LUX @ 100m)
Note: All specifications independently tested. Multiple beam patterns available - spot, combo, or flood.
Product Name
Spectrumtek Fusion SX-30
Product Type
Professional Ditch Light / Off-Road Auxiliary
LED Technology
2 Pieces High-Intensity CREE 10W Chips
Total Power
30W Optimized Output
Luminous Output
3,750 Lumens (Actual Measured)
Effective Range
100 Metres (1 LUX @ 100m)
Color Temperature
6000K Cool White
Optical System
8D Advanced Reflector Design
Beam Pattern Options
Spot | Combo | Flood (Select at Order)
Operating Voltage
9-32V DC (12V & 24V Compatible)
Current Draw @ 12V
Approximately 2.5A
Current Draw @ 24V
Approximately 1.25A
Physical Size
105 × 70 × 92.5mm (L × W × H)
Housing Material
Die-Cast Aluminium Alloy
Lens Material
PC Polycarbonate (Impact Resistant)
Primary Waterproof
IP68 (Complete Dust Seal, 1m Immersion)
Enhanced Waterproof
IP69K (High-Pressure, High-Temperature)
Operating Temperature
-40°C to +85°C (-40°F to +185°F)
Cooling System
Aluminium Cooling Fins (Integrated)
Breather System
Military-Grade Pressure Equalization
Polarity Reversal Protection
Integrated MOSFET Protection System
Overvoltage Protection
Surge and Spike Protection Circuitry
Overload Protection
Automatic Current Monitoring
Vibration Resistant
Professional Shock-Mounted Design
LED Lifespan
50,000+ Hours (30,000+ Typical Usage)
Certifications
CE | RoHS | EMC | IP68 | IP69K
Warranty
24-Month Manufacturer Warranty
The Fusion SX-30 is available in three precision-engineered light options optimized for different professional applications. Each option uses the same premium CREE LED technology and 8D optical system with beam-specific reflector configuration. Select your preferred beam pattern at time of order.
Spot Beam Option
Focused long-range illumination ideal for maximum distance projection. Concentrated beam delivers exceptional penetration up to 100+ metres, perfect for highway driving, open terrain navigation, and maximum forward visibility. Recommended for primary forward-facing applications.
Combo Beam Option
Versatile combination of spot and flood providing balanced distance and peripheral coverage. Dual-zone optical design delivers concentrated center spot (70+ metres) with flood spread for immediate area visibility. Most popular choice offering complete coverage for diverse applications.
Flood Beam Option
Wide-angle close-range illumination ideal for immediate area coverage. Broad beam spread provides comprehensive peripheral visibility, excellent for reversing lights, work area lighting, campsite illumination. Recommended for auxiliary and work-focused installations.
Polarity Reversal Protection
Integrated MOSFET protection prevents damage from incorrect wiring connections during installation. Responds in microseconds to safeguard CREE LED chips and driver circuitry. Critical for ditch light installations where wiring errors can occur during A-pillar or cowl mounting.
Overvoltage Protection
Surge and spike protection circuitry guards against voltage transients common in vehicle electrical systems, particularly during alternator load dump or jump-starting. Protects sensitive LED driver electronics ensuring long-term CREE LED reliability in off-road conditions.
Overload Protection
Automatic current monitoring system prevents damage from short circuits or excessive current draw. Intelligent protection circuitry monitors 30W power consumption and disconnects if load exceeds safe operating parameters, protecting both light and vehicle electrical system.
Vibration Resistant Engineering
Professional shock-mounted construction withstands extreme vibration and impact encountered in off-road applications. Die-cast aluminium housing and robust internal mounting tested to automotive standards for proven reliability in demanding conditions including rock crawling and trail riding.
Military Grade Breather Valve
Military-specification breather valve maintains internal pressure equalization while preserving IP68/IP69K dual certification. Prevents condensation buildup and lens fogging during rapid temperature transitions encountered in off-road and trail riding conditions. Breathable yet waterproof construction allows air exchange while blocking water and dust ingress, eliminating moisture accumulation that degrades CREE LED output. Temperature stable from -40°C to +85°C, essential for compact ditch light reliability in demanding A-pillar and cowl mounting applications.
• A-Pillar Mounting: Trucks, SUVs, 4×4s requiring corner illumination
• Cowl Mounting: Jeep Wrangler, pickup trucks, off-road vehicles
• Ditch Lights: Trail lighting, rock crawling, technical terrain
• Auxiliary Lighting: Supplemental illumination, work lights
• Reversing Lights: Wide flood pattern for backing maneuvers
• 24-Month Warranty: CREE LED failures, housing defects, seal issues, optical failures
• CE Certified: European conformity standards compliance
• RoHS Compliant: Environmentally responsible, no hazardous substances
• EMC Approved: Electromagnetic compatibility verified
Spectrumtek specialises in professional automotive LED lighting with over 15 years of combined engineering experience. We partner with CREE and premium component suppliers to deliver compact ditch light solutions featuring advanced 8D optical systems for A-pillar, cowl, and auxiliary mounting applications throughout the United Kingdom and Europe.
