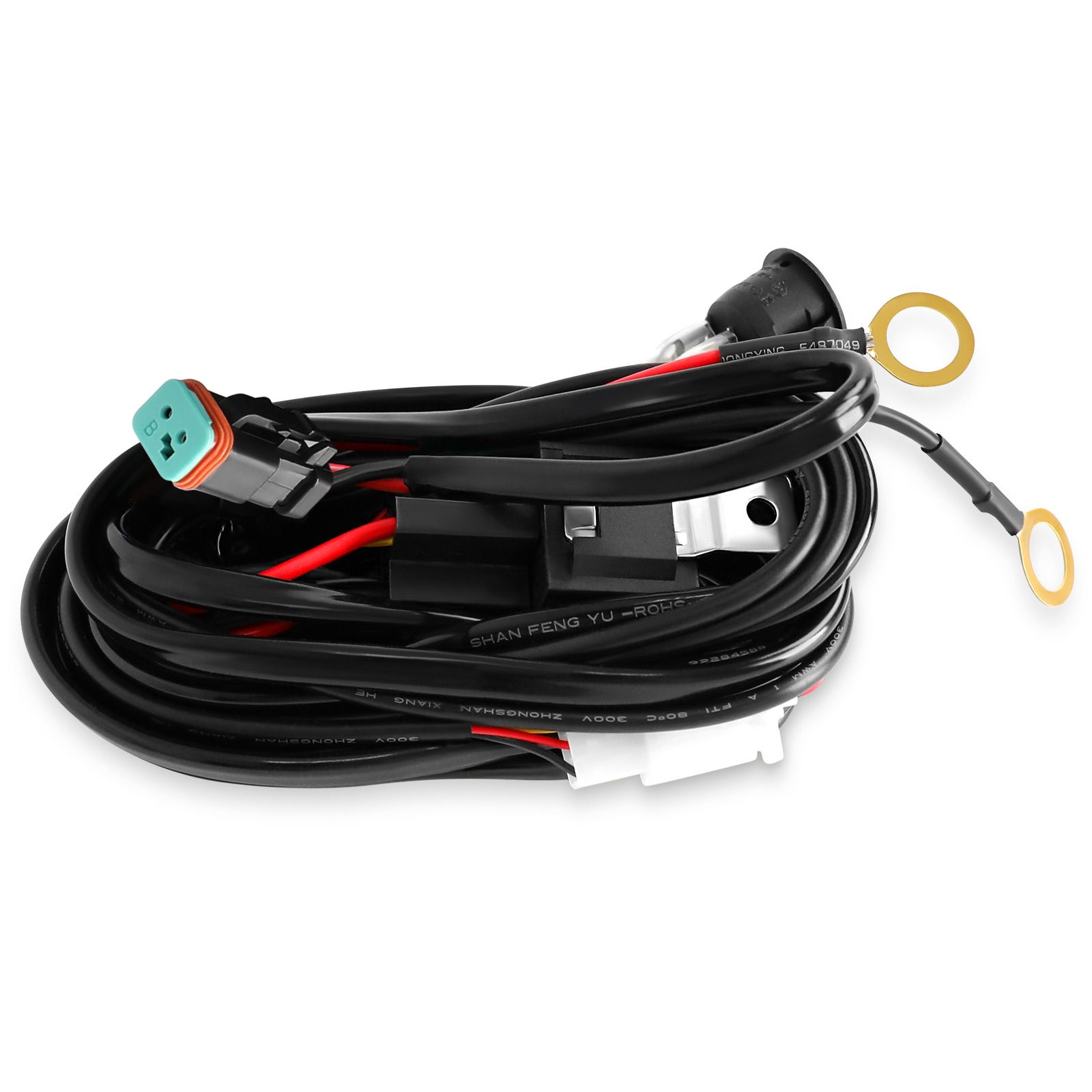

Single Output LED Light Bar Wiring Kit - 200W | 14 AWG | 10ft

●     Complete Solution: Everything needed—40A relay, fuse, switch, 14 AWG harness, hardware in one kit

●     Automotive Grade: Heavy-duty components meeting OEM standards for reliability

●     Proper Wire Gauge: 14 AWG ensures minimal voltage drop maintaining LED brightness

●     Easy Installation: Colour-coded wiring enables DIY installation

●     Professional Support: UK-based technical team provides installation and troubleshooting assistance

●     Automotive & Off-Road: 4x4 vehicles, trucks, SUVs, Jeeps

●     Agricultural: Tractors, combines, harvesters (12V/24V)

●     Marine: Work boats, fishing vessels, recreational boats

●     Construction: Excavators, forklifts, plant equipment

●     Emergency: Recovery vehicles, security, first responders

Professional installation in six simple steps:

●     1. Battery: Connect red wire (with 30A fuse) to battery positive terminal

●     2. Ground: Attach black wire to clean chassis ground or battery negative

●     3. Relay: Mount 40A relay in protected engine bay location using bracket

●     4. Trigger: Connect blue wire to ignition ACC circuit (optional)

●     5. Switch: Install illuminated switch in 20mm dashboard cutout

●     6. Light: Connect DT output to LED light bar DT input—secure click

●     200W Capacity: Heavy-duty 14 AWG wiring supports LED light bars up to 200W @ 12V or 400W @ 24V

●     40A Relay Protection: Heavy-duty automotive relay isolates high-current load from switch preventing damage and voltage drop

●     Fused Protection: 30A inline fuse provides overcurrent protection for electrical system safety

●     Plug-and-Play: Pre-wired, colour-coded harness, easy DIY installation

●     Maximum Load: 200W @ 12V (16.7A) | 400W @ 24V (16.7A)

●     Wire Gauge: 14 AWG (2.5mm²) tinned copper—rated 17A continuous, 30A max

●     Relay Rating: 40A automotive-grade SPST relay

●     Harness Length: 10ft (3m) total cable length

●     Voltage: 12V and 24V DC compatible

●     Waterproof: IP67 DT connector

●     Temperature: -40°C to +85°C

●     40A Automotive Relay: SPST relay with mounting bracket for high-current switching

●     30A Inline Fuse: ATO/ATC blade fuse with holder for overcurrent protection

●     IP67 DT Connector: Waterproof 2-pin Deutsch-style connector compatible with most LED lights

●     Illuminated Switch: Red LED backlit rocker switch (20A rated)

●     14 AWG Harness: 10ft (3m) tinned copper wiring with colour-coded cables and pre-crimped terminals
