Vortex-FX Series 22-52 Inch Duel Row, LED Lightbar, Straight or Curved, Osram
offer
22-52 Inch Duel Row, LED Lightbar, Straight or Curved, Osram 3030 LED Chips, Wiring Kit Not Included
The Spectrumtek Vortex-FX Series is a professional LED driving light bar range built on genuine Osram 3030 LED technology, available in five sizes – 22", 32", 42", 50", and 52" – in both straight and curved configurations. Scalable output ranges from 60W (3,600 lm / 248 m) to 140W (8,400 lm / 412 m), making the Vortex-FX the definitive choice for off-road, agricultural, commercial, and emergency vehicle operators who demand proven performance and long-term reliability. All models share universal 10–30V DC compatibility, 50,000-hour rated lifespan, and comprehensive protection systems across 12V and 24V vehicle systems.
• Osram 3030 LED Chips: 3W each – 60 to 120 chips per model; 120+ lm/W chip efficiency
• Five Sizes: 22", 32", 42", 50", 52" – straight or curved configuration on every size
• Scalable Power: 60W / 80W / 100W / 120W / 140W matching application requirements
• Verified Range: 248 m – 412 m (1 lux) independently validated across series

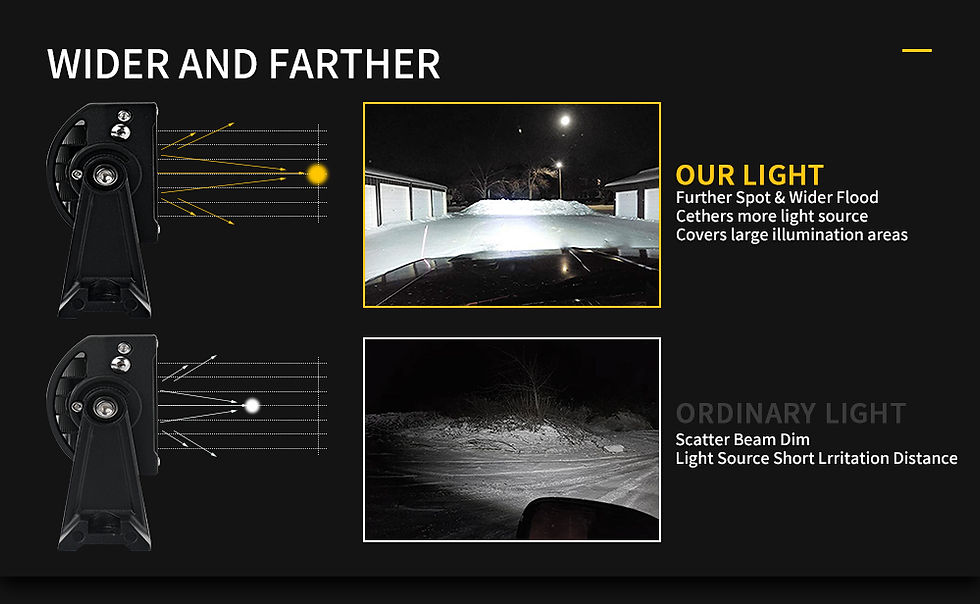

• Advanced 12D Optics: Precision beam shaping, professional driving beam pattern, 6000K
• IP68 / IP69K Dual Certified: Dust-tight submersion + 100 bar / 80°C high-pressure wash
• Military-Grade Breather Valve: Pressure equalisation prevents condensation; synergistic with IP seals
• Over-Voltage Protection: Guards against alternator load dumps and jump-start spikes
• Polarity Reversal Protection: MOSFET-based, microsecond response, full 10–30V range
• Vibration Resistant: 6063 aluminium housing; validated >15G continuous / 25G shock peaks
• 6063 Die-Cast Aluminium Housing: Black finish; integrated cooling fins for sustained thermal management
• PC Polycarbonate Lens: 250× glass impact resistance; UV-resistant coating
• 50,000-Hour Lifespan: >80% lumen output retained after 50,000 hours at -40°C to +85°C
• CE, RoHS, and EMC certified for international quality assurance
• 24-Month Full Manufacturer Warranty; professional wiring kit sold separately
Specification
22"
32"
42"
50"
52"
Physical Size
533×70×50 mm
788×70×50 mm
1043×70×50 mm
1247×70×50 mm
1298×50 mm
Osram 3030 LEDs
60 pcs
80 pcs
100 pcs
116 pcs
120 pcs
Total Power
60W
80W
100W
120W
140W
Lumen Output
3,600 lm
4,800 lm
6,000 lm
7,200 lm
8,400 lm
Effective Range
1 lux @ 248 m
1 lux @ 295 m
1 lux @ 353 m
1 lux @ 398 m
1 lux @ 412 m
Current @ 12V
~5 A
~6.7 A
~8.3 A
~10 A
~11.7 A
Current @ 24V
~2.5 A
~3.3 A
~4.2 A
~5 A
~5.8 A
Configuration
Straight/Curved
Straight/Curved
Straight/Curved
Straight/Curved
Straight/Curved
Specification
Value
Series / Model
Spectrumtek Vortex-FX
LED Technology
Genuine Osram 3030 (3W per chip)
Optical System
12D Advanced Precision Reflector
Beam Pattern
Professional Driving Beam
Colour Temperature
6000K Cool White
Operating Voltage
10–30V DC (12V & 24V compatible)
Housing
6063 Die-Cast Aluminium – Black Finish
Lens
Polycarbonate (PC) – UV Resistant
Waterproof Rating
IP68 / IP69K Dual Certified (IEC 60529)
Military Breather Valve
Pressure-equalising; prevents condensation; maintains IP seal
Over-Voltage Protection
Surge & spike circuit; handles load dump up to 120V (24V systems)
Polarity Protection
MOSFET-based; microsecond response; 10–30V full range
Vibration Resistance
>15G continuous; >25G shock peaks; validated off-road/agricultural
Operating Temperature
-40°C to +85°C
LED Lifespan
50,000+ Hours (>80% output at 50,000 hrs)
Certifications
CE, RoHS, EMC
Warranty
24 Months Full Manufacturer Warranty
Protection Feature
Technical Detail
Over-Voltage Protection
Surge/spike protection circuit; rated for alternator load dumps (up to 120V in 24V systems) and jump-start transients; precision driver regulation ±accuracy across 10–30V input
Polarity Reversal Protection
MOSFET-based circuit; activates in microseconds on reversed polarity; negligible voltage drop; no manual reset; independent across all five model sizes
Vibration Resistance
6063 aluminium housing with structural ribbing; high-temp solder on Osram 3030 mounts; heavy-gauge stranded wiring; validated >15G continuous vibration and >25G shock peaks
Overload / Short Circuit
Automatic current monitoring; scalable detection thresholds (5A @ 22" to 11.7A @ 52" at 12V); microsecond disconnection on fault; auto-recovery on clearance
Military Breather Valve
Equalises internal/external pressure across -40°C to +85°C thermal cycling; blocks moisture and contaminants; works synergistically with IP68/IP69K seals to prevent condensation
IP68 Waterproofing
Complete dust ingress prevention; sustained submersion >1 m depth; protects all Osram 3030 chips and driver electronics
IP69K Protection
Withstands 80–100 bar, 80°C water jets; safe for agricultural and commercial pressure-wash maintenance on all models

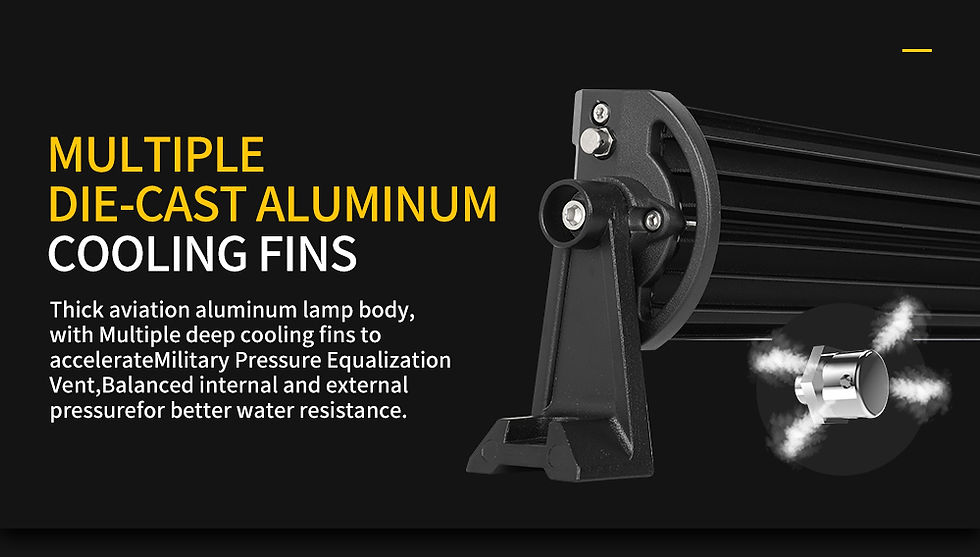

Thermal Management
Integrated aluminium cooling fins; 6063 alloy thermal conductivity ~205 W/m·K; maintains Osram 3030 LED junction temp within optimal range from 60W to 140W
Lumen Retention
Osram 3030 LEDs maintain >80% luminous output after 50,000 operating hours with correct thermal management
EMC Compliance
Electromagnetic Compatibility certified; no interference with modern CAN-bus and vehicle electronics across all five Vortex-FX sizes
Connector Type
DT Connector
The Vortex-FX Series covers the full spectrum of professional auxiliary lighting needs. The 22" (60W) suits ATVs, UTVs, motorcycles, and compact trucks. The 32" (80W) serves mid-size SUVs, agricultural tractors, and commercial vehicles. The 42" (100W) is engineered for full-size trucks, off-road vehicles, and harvesters. The 50" (120W) and 52" (140W) are the ultimate solution for expedition vehicles, emergency services, and commercial fleets demanding maximum 398–412 metre distance performance.
Straight configuration is recommended for flat roof racks, bumpers, and minimal-curve rooflines. Curved configuration matches common truck and SUV rooflines for seamless aerodynamic integration. Both configurations deliver identical Osram 3030 performance specifications across all five sizes.
Spectrumtek is a UK-based professional LED lighting specialist with over 15 years of automotive and off-road lighting expertise. We maintain direct relationships with Osram and subject every Vortex-FX unit to pre-dispatch quality testing. All performance specifications are independently verified through photometric laboratory testing in accordance with international automotive lighting standards. Our UK-based engineering and support teams provide technical guidance from size selection through installation and beyond.
